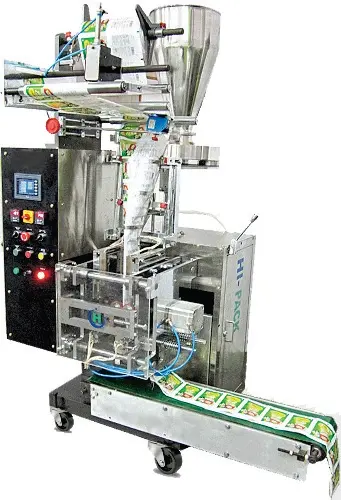

Single Track Pneumatic Pneumatic Packing Machine
Single Track Packing Machine For Paste, Liquid and Granules Filling
Single Track Pneumatic Pneumatic Packing Machine
HP-094A
Single Track Packing Machine For Paste, Liquid and Granules Filling
Technical Specifications
Track | 1 Track |
Sealing Type | Three / Four Side |
To Pack | Liquid, Paste and Granules |
Packaging Range | 0.5ml - 250ml |
Filling Type | Volumetric Piston Filler / Cup Filling |
Machine Speed | 15-45 strokes/min (Depends on the filling volume) |
Packing Material | Heat Sealable Laminate |
Compressor | 4cu Mtr/Hr @ 7Bar |
Power | 3kW (Three Phase) |
Accuracy | ± 1% |
Dimensions - LxBxH (mm) | 600 x 1000 x 1800 |
Weight | 500kg approx. |
